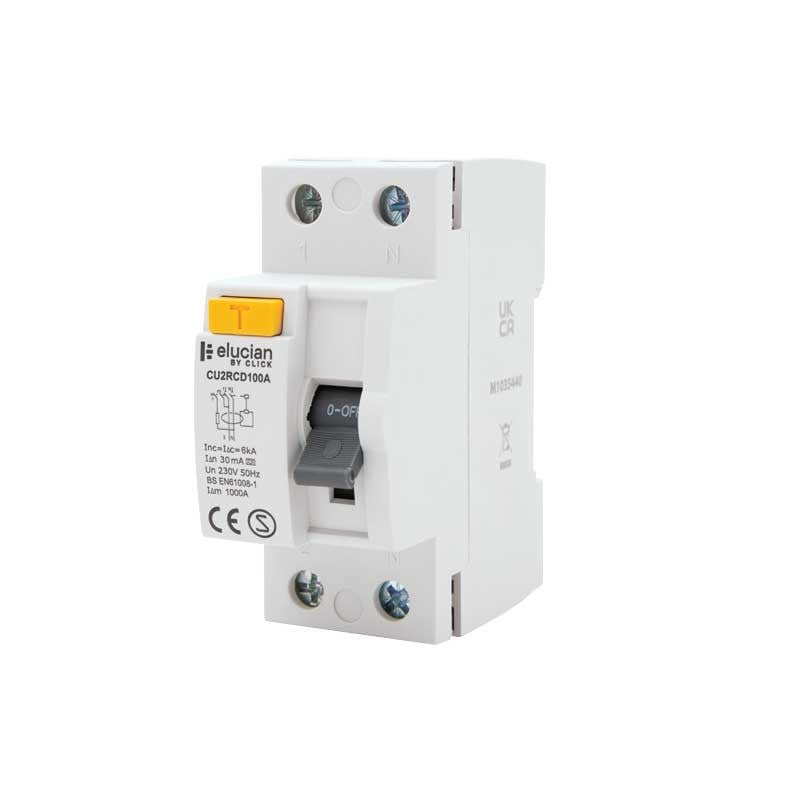

Click Elucian RCDs (Residual Circuit Device) with a 30mA tripping sensitivity. Available in 63A, 80A and 100A current ratings.
-
Features
Click Elucian RCDs (Residual Circuit Device) with a 30mA tripping sensitivity. Available in 63A, 80A and 100A current ratings.
With Type A RCD protection that have the ability to continue operating with up to 6mA of DC fault current present. This amount of fault current has been shown to stop AC Type RCDs from working within the maximum time permitted in BS76761.
Key Features
- Available in current rating options: 63A, 80A and 100A
- Number of poles: 2
- mA rating: 30mA
- Standard: BS EN 61008-1
- Type A RCD protection
- IP rating: IP20
- Voltage: 230V 50/60Hz
- Manufacturer: Click Scolmore
- Guarantee: 3 years
-
Specifications & Dimensions
Specifications Amp Rating SpecificationsBrand SpecificationsClick Scolmore Dimensions Located Below Specifications Table IP Rating SpecificationsIP (International or Ingress Protection) defines a products level of resistance to dust and moisture. The first digit is for dust and the second digit is for moisture.
An IP65 rating offers a high resistance to moisture and is popular rating for outdoor lighting and electrical enclosures.
IP65 is usually specified for bathroom downlights but according to the Building Regulations, IP44 provides adequate protection for zones 1 & 2.
IP20 Poles 2 Product Type RCD RCD Type Type A Series SpecificationsThe sub-brand of a manufacturer that groups collections of products together.
Click Elucian Sku CU2RCD* Voltage SpecificationsAC standards for alternating current and DC standards for direct current.
Mains voltage is 230V AC and has a tolerance of 10%, some products are 220V or 240V AC which means they can be classed as mains voltage.
DC voltages usually require an LED driver to convert the mains voltage AC into low voltage DC. Popular DC voltages are 12V or 24V DC.
230V AC Warranty Specifications3 Years mA Rating 30 mA - Height: 87mm
- Width: 35.6mm
- Depth: 74mm
-
Reviews
-
Product Questions & Answers 1
Product Questions & Answers
Are these bi directional? If not what would be the the outcome when fitting a solar pv system with one.
Thanks steveQuestion by: steven on 29 Feb 2024, 19:58I've checked with Elucian technical department about this:
Our range of 2 pole RCBO’s, RCD’s and MCB’s are Bidirectional.
(CU2RCBO**, CU2RCD** and CU1MCB**)
Our RCD’s, 2 pole RCBO’s, and MCB’s only show a Live side and a Neutral side connection. These bidirectional devices mitigate any potential safety issues for power supplies connected to either set of terminals.
A Unidirectional RCBO (CU1RCBO** and CU1AFDD** devices) can have their RCD function rendered permanently inoperable when connected incorrectly e.g., if, under certain conditions, there is a voltage present on their load terminals. The damaged RCBO could remain in use without indication that its RCD protective function no longer operates.Answer by: Chris Horridge (Admin) on 1 Mar 2024, 09:12 -
Product Codes
- CU2RCD63A - 63A
- CU2RCD80A - 80A
- CU2RCD100A - 100A
