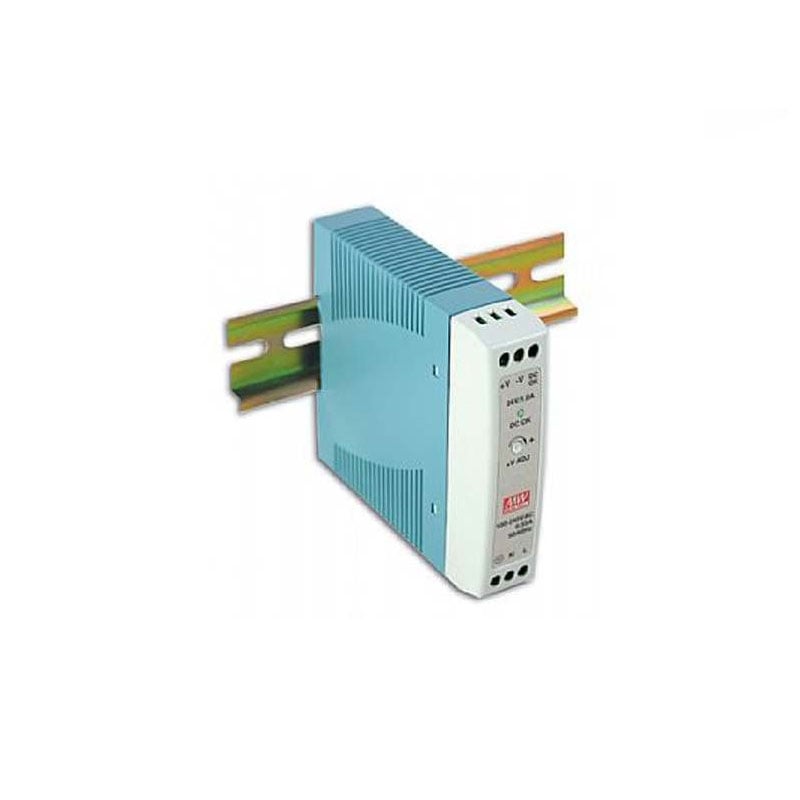

Mean Well MDR Din Rail Power Supplies

Usually Available in 3-4 Days
SKU
MDR-**-**
Rating:
100% of 100
Per Each
Special Price £20.65 Incl. VAT

Mean Well MDR power supplies are available in four different wattage ratings and frame sizes. Small frame sizes and current ratings ranging from 1.67 to 4 amps.

  • Features

    Mean Well MDR miniature power supplies are available in four different wattage ratings and frame sizes. Small frame sizes and current ratings ranging from 1.67 to 4 amps.

    Key Features

    • Current Ratings
      - MDR-20-12 - 12V / 20W / 1.67A
      - MDR-20-24 - 24V / 20W 1A
      - MDR-40-12 - 12V / 40W / 3.3A
      - MDR-40-24 - 24V / 40W / 1.7A
      - MDR-60-12 - 12V / 60W / 5A
      - MDR-60-24 - 24V / 60W / 2.5A
      - MDR-100-12 - 12V / 100W / 7.5A
      - MDR-100-24 - 24V / 100W / 4A
    • Din rail mountable.
    • With short circuit, overload and over voltage protection.
    • Miniature frame sizes starting at 90x22.5x100mm (LxWxD). With an even smaller 10W version available on request.
    • Wide universal input voltage range of 85-264V AC.
    • Available in 12V or 24V DC output voltages with 5V and 15V DC versions available on request.
    • Manufacturer: Mean Well
    • Guarantee: 2 years

  • Specifications
    Specifications
    Brand Mean Well
    Dimmable Non Dimmable
    Input Voltage 85-264V AC
    Output Voltage
    Product Type Power Supply
    Sku MDR-**-**
    Warranty 2 Years
    Wattage
  • Reviews
  • Downloads
  • Dimensions

    MDR-20 Dimensions

    • Height: 90mm
    • Width: 22.5mm
    • Depth: 100mm

    MDR-40 Dimensions

    • Height: 90mm
    • Width: 40mm
    • Depth: 100mm

    MDR-60 Dimensions

    • Height: 90mm
    • Width: 40mm
    • Depth: 100mm

    MDR-100 Dimensions

    • Height: 90mm
    • Width: 55mm
    • Depth: 100mm

  • Product Codes
    SKUPower Rating (W)Output Voltage
    MDR-20-1220W12V DC
    MDR-20-2420W24V DC
    MDR-40-1240W12V DC
    MDR-40-2440W24V DC
    MDR-60-1260W12V DC
    MDR-60-2460W24V DC
    MDR-100-12100W12V DC
    MDR-100-24100W24V DC
    "
