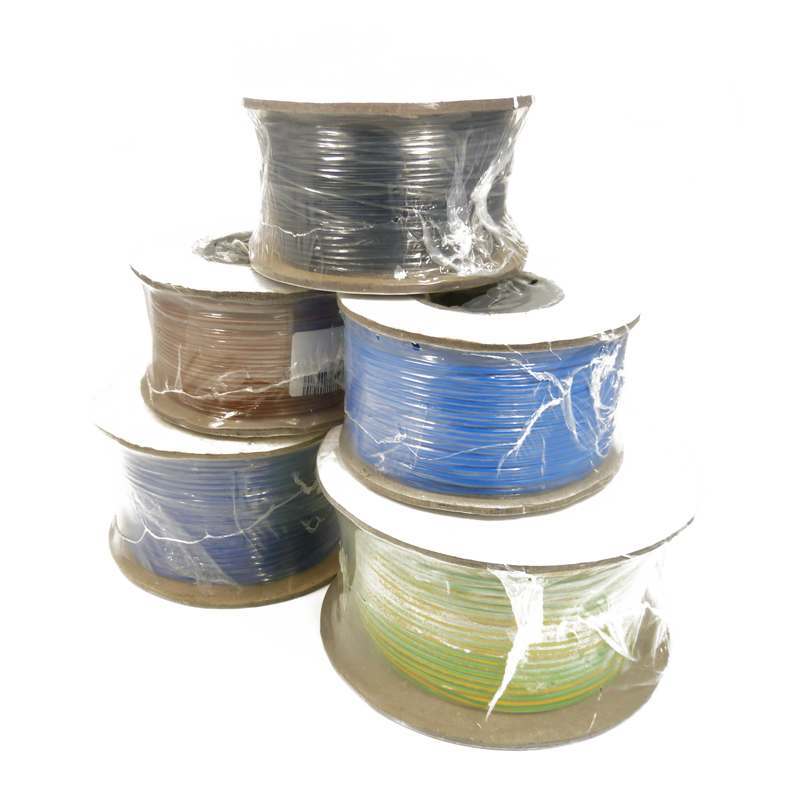

6491X Cable (Per Reel)

Over 100 In Stock
SKU
6491X
Per 100M
Special Price £1.85 Incl. VAT

6491X is a single core cable that is mainly used for wiring through conduit or trunking.

  • Features

    6491X is a single core cable that is mainly used for wiring through conduit or trunking. Larger sizes can be used for many applications to feed power to industrial and domestic equipment. Available in a range of colours and sizes from 1.5mm² to 16mm² with larger sizes such as 25mm² and more available on request.

    We now have 16mm² avaialble to purchase by the metre, now you add short lengths of earth cable for your consumer unit installations along with 6181Y tails cables.

    6491X cable has a PVC insulation and is approved to BS EN50525-2-31.

    Key Features



    • Colours to choose from:
      Black, blue, brown, green & yellow and grey with other colours available on request
    • Sizes range from 1.5mm² to 16mm² with larger sizes available on request.
    • Temperature rating: 70 degrees C.
    • Sold in: 100mtr reels as standard, larges sizes such as 16mm² now available per metre as well.
    • Voltage rating: 450/750V
    • Minimum bend radius: 6x overall diameter



  • Specifications
    Specifications
    Brand Cable
    Cable Cores 1
    Cable Size
    Colour
    Product Type 6491X Cable
    Reel Length
    Sku 6491X
  • Dimensions

    1.5mm²

    • Nominal thickness of insulation: 0.7mm
    • Nominal overall diameter: 3mm
    • Maximum current rating: 17A

    2.5mm²

    • Nominal thickness of insulation: 0.8mm
    • Nominal overall diameter: 3.7mm
    • Maximum current rating: 24A

    4mm²

    • Nominal thickness of insulation: 0.8mm
    • Nominal overall diameter: 4.2mm
    • Maximum current rating: 32A

    6mm²

    • Nominal thickness of insulation: 0.8mm
    • Nominal overall diameter: 4.8mm
    • Maximum current rating: 41A

    10mm²

    • Nominal thickness of insulation: 1mm
    • Nominal overall diameter: 6mm
    • Maximum current rating: 55A

    16mm²

    • Nominal thickness of insulation: 1mm
    • Nominal overall diameter: 6.8mm
    • Maximum current rating: 74A

  • Product Codes
    SKU Cable Size Colour Reel Length
    6491X1.5BK/100M 1.5mm Black 100
    6491X1.5BL/100M 1.5mm Blue 100
    6491X1.5BR/100M 1.5mm Brown 100
    6491X1.5GR/100M 1.5mm Grey 100
    6491X1.5GY/100M 1.5mm Green and Yellow 100
    6491X2.5BK/100M 2.5mm Black 100
    6491X2.5BL/100M 2.5mm Blue 100
    6491X2.5BR/100M 2.5mm Brown 100
    6491X2.5GR/100M 2.5mm Grey 100
    6491X2.5GY/100M 2.5mm Green and Yellow 100
    6491X4.0BK/100M 4mm Black 100
    6491X4.0BL/100M 4mm Blue 100
    6491X4.0BR/100M 4mm Brown 100
    6491X4.0GR/100M 4mm Grey 100
    6491X4.0GY/100M 4mm Green and Yellow 100
    6491X6.0BK/100M 6mm Black 100
    6491X6.0BL/100M 6mm Blue 100
    6491X6.0BR/100M 6mm Brown 100
    6491X6.0GR/100M 6mm Grey 100
    6491X6.0GY/100M 6mm Green and Yellow 100
    6491X10BK/100M 10mm Black 100
    6491X10BL/100M 10mm Blue 100
    6491X10BR/100M 10mm Brown 100
    6491X10GR/100M 10mm Grey 100
    6491X10GY/100M 10mm Green and Yellow 100
    6491X16BK/100M 16mm Black 100
    6491X16BL/100M 16mm Blue 100
    6491X16BR/100M 16mm Brown 100
    6491X16GR/100M 16mm Grey 100
    6491X16GY/100M 16mm Green and Yellow 100

    "
