Comparing Waterproof Cable Connectors: A Brief Guide
Waterproof cable connectors are a vital component in many industries as well as in your home or garden. They ensure safe & reliable connections in environments exposed to water, dust, or moisture.
Understanding the different types of waterproof connectors is crucial. It helps in selecting the right connector for specific needs. This guide will compare various waterproof cable connectors. It will highlight their features, installation ease, and durability among other factors.
By the end of this guide, you'll be equipped to make an informed decision when purchasing waterproof cable connectors. Let's dive in.
Understanding IP Ratings and Their Importance
IP ratings are essential for understanding a connector's protection level. They indicate the degree of defense against solids and liquids. These ratings are crucial when choosing waterproof electrical connectors. Higher ratings mean better protection, which is vital for challenging environments.
Typically, an IP68 rating provides the highest level of protection. It ensures complete dust tightness and immersion in water beyond 1 meter. An IP65 rating is also very popular especially in light fixtures, while its not submersible it offers adequate protection against dust and water ingress.
- First digit (solid particle protection) – Ranges from 0 (no protection) to 6 (dust-tight).
- Second digit (liquid protection) – Ranges from 0 (no protection) to 9K (high-pressure, high-temperature water resistance).
Comparison of IP65 vs. IP68
| Rating | Solid Protection | Water Protection |
|---|---|---|
| IP65 | Completely dust-tight | Protected against low-pressure water jets from any direction |
| IP68 | Completely dust-tight | Can be submerged in water beyond 1 meter (typically specified by the manufacturer) |
Key Differences
- IP65: Offers strong water resistance but is not designed for full submersion. It can handle rain, splashes, and low-pressure water jets, making it ideal for outdoor lights, industrial plugs, and sockets.
- IP68: Provides the highest level of water protection and can be submerged underwater for extended periods (depth and duration depend on manufacturer specs). It's commonly used in underwater lighting, marine applications, and fully waterproof enclosures.
Which One Do You Need?
- If you need outdoor protection against dust, rain, and general water splashes, IP65 is usually sufficient.
- If the product will be submerged underwater (e.g., pond lights, underwater sensors), IP68 is the better choice.
- If you're installation isn't going to be anywhere near water, you could use a basic IP20 rated connector, or you could install an IP20 connector inside an IP65, IP66 or IP68 rated enclosure.
When selecting cable connectors, always consider the IP rating. It can be the difference between success and failure in harsh conditions.
Types of Waterproof Cable Connectors
Waterproof cable connectors come in various types. Each type serves specific needs and applications in diverse environments.
Here's a brief rundown of common types:
- Screw-on connectors: These provide a secure, threaded connection.
- Bayonet connectors: They ensure a quick, twist-and-lock fit.
- Push-pull connectors: Designed for easy connection and disconnection.
- Twist-lock connectors: Offer secure and stable connections.
- Lever connectors. Insert your cable and clamp the lever down. Shown below...

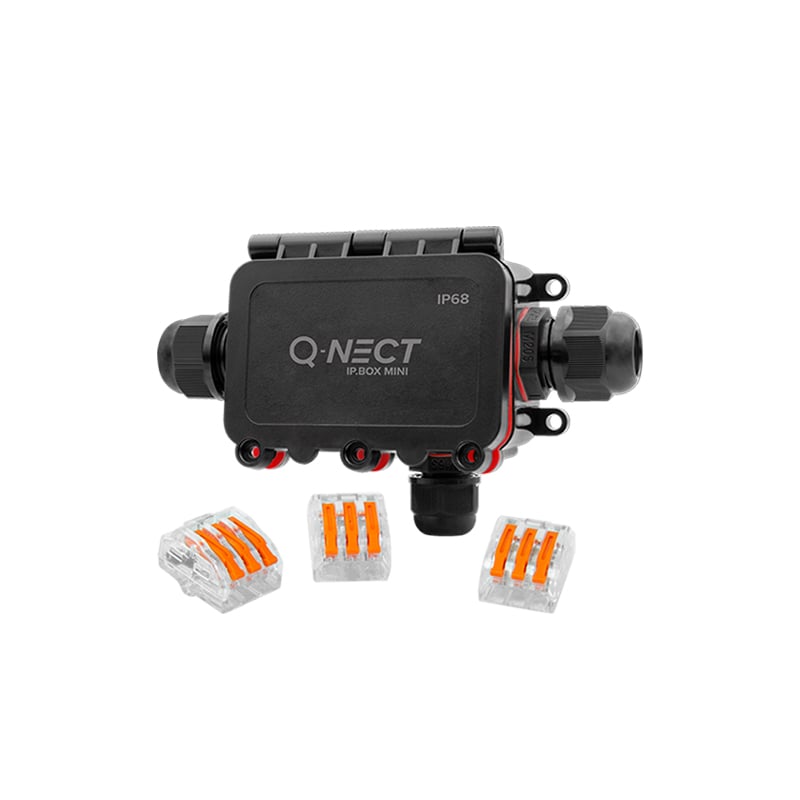

Selecting the right type is crucial. It impacts installation ease and long-term reliability. Different types suit different projects, so choose wisely based on your requirements.
Key Features to Consider When Choosing Waterproof Connectors
When selecting waterproof cable connectors, several features are crucial. These features ensure both compatibility and reliability in various conditions. First, check the material used. Rubber or silicone seals provide better waterproofing. They maintain a secure and effective seal over time.
Connector ratings are important too. Look for IP ratings that suit your environment. A high rating ensures better protection against dust and water. Also, consider the connector's installation and maintenance. Easy installation saves time and effort. Look for connectors designed for minimal maintenance.
Here’s a checklist of key features to evaluate:
- Material type and durability
- IP rating for protection level
- Installation and maintenance requirements
- Resistance to corrosion and environmental factors
- Compatibility with existing systems

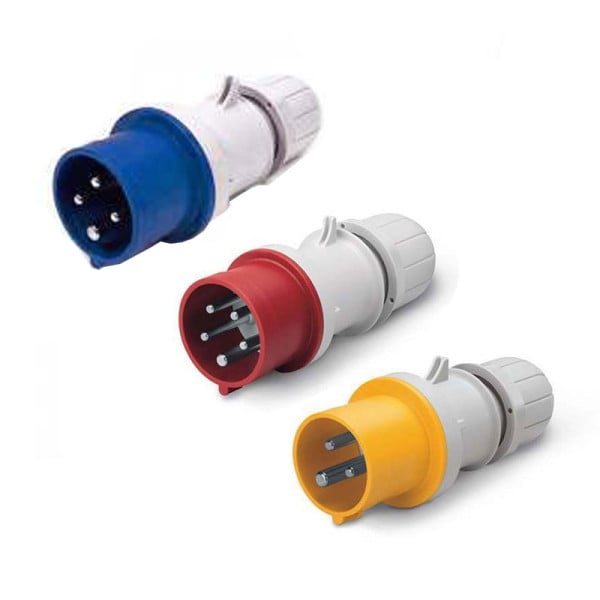

Finally, assess current and voltage ratings. These determine the connector's suitability for your electrical needs. Ensuring these features meet your requirements will lead to a secure and lasting connection. The majority of installations are mains voltage 230V AC but its always worth double checking. There are other types of industrial cable connectors which have their own color coding system with yellow for 110V, blue for 230V and red for 400V.
IP68 Connectors: The Gold Standard in Waterproofing
IP68 connectors provide excellent protection against water and dust. They are ideal for challenging environments.
These connectors can withstand long-term immersion in water. They keep electrical connections secure and intact.
Their robust design makes them suitable for industries like marine and construction. IP68 connectors ensure reliability under extreme conditions. The Unicrimp Q-Nect 5 pole 2 way 24A IP68 inline connector shown below can be used in a wide range of wiring applications from gardens to industrial.
Installation and Maintenance: Ensuring Long-Term Protection
Proper installation of waterproof cable connectors is crucial for their performance. Read the manufacturer's guidelines carefully. Ensure all components fit securely to prevent water ingress. A watertight seal depends on precision. Routine maintenance checks are essential. Inspect connectors for wear or damage regularly.
Replace seals or gaskets if they degrade over time. This helps maintain long-lasting protection.
Balancing Cost and Quality in Waterproof Connectors
Choosing the right waterproof connector involves balancing cost and quality. Higher-priced options often offer better features. However, budget-friendly connectors can meet specific needs efficiently. Consider both performance and budget constraints.
Conclusion: Making an Informed Decision
In the world of cable connectors, waterproof options are invaluable. They ensure durability and protection against harsh elements. Selecting the right connector requires thoughtful consideration of various factors. By comparing specifications and applications, you can make a well-informed choice that suits your needs.
Read more about QNect waterproof connectors in the brochure featured below:
