Understanding Different Types of Cable Connectors

Cable connectors play a vital yet often overlooked role in modern electrical and electronic systems. From lighting installations to complex industrial machinery, they provide the secure and reliable connections that keep everything running smoothly.

Having a clear understanding of the various types of cable connectors is essential for selecting the most suitable option for each application. The right choice not only ensures performance and safety but also enhances long-term reliability.

In this guide, we’ll take an in-depth look at cable connectors - their different types, key applications, and why it’s important to match the connector to the demands of the environment. We’ll pay particular attention to connectors used in lighting systems, industrial settings, and environments requiring waterproof protection.

The Role of Cable Connectors in Electrical Systems

Cable connectors are fundamental components in almost any electrical installation, facilitating the efficient transmission of power, data, and signals. Without them, electrical links would be prone to failure, posing risks to both performance and safety.

Electrical wiring connectors provide secure and stable interfaces between system components, ensuring consistent functionality across a wide range of applications. Their versatility allows them to be adapted to the specific requirements of each environment—whether it's a straightforward residential setup or a demanding industrial installation.

In addition to reliability, cable connectors are designed for ease of use. They simplify installation, enable quick disconnections or replacements, and support streamlined maintenance processes, all of which contribute to reduced downtime and greater operational efficiency.

Common Types of Cable Connectors and Their Applications

Cable connectors come in various types, each serving a unique purpose. Their design is tailored to specific applications and environments. Understanding these types is crucial for selecting the right connector.

Here are some common types of cable connectors:

• Power Connectors: Often used in residential and commercial settings.
• Signal Connectors: Transmit audio and visual signals, such as those used in televisions.
• Data Connectors: Used in communication systems, such as Ethernet connectors.

Each type has distinct characteristics and specifications. Power connectors, for example, handle high currents and voltages. Signal connectors, in contrast, focus on preserving signal quality.

Data connectors like USB, RJ45 and Ethernet facilitate fast data transfer. They are integral to modern communication systems. Selection must ensure compatibility and performance.

Choosing the right connector reduces technical issues while enhancing overall system reliability and efficiency. Selecting the appropriate connector saves time and decreases costs.

Revolutionary Cable Connectors

The most basic form of cable connectors are called strip connectors or terminal blocks shown below. They have a screw terminal and can be cut, to separate each connector for your individual purpose. Made from polyethylene, they're available in 5A, 15A, 30A and 60A versions. They're easy to use and have been very popular throughout the years, but they're quite clunky and require you to use a screwdriver to terminate the connections.

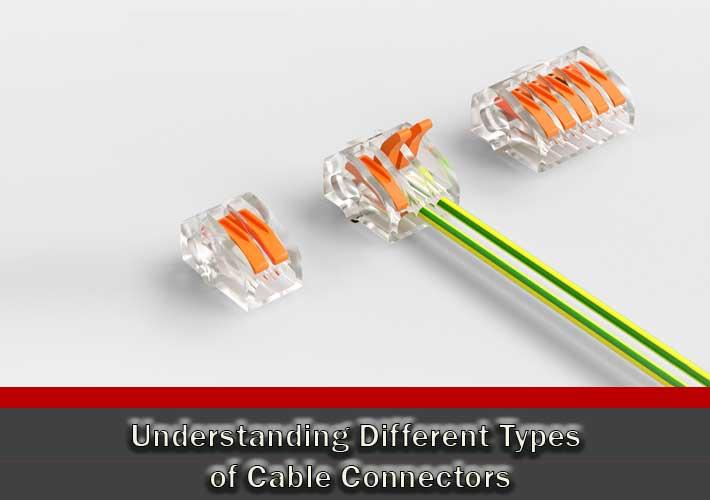

Wago revolutionised the cable connector industry with their 222 series lever connectors shown below. This lever design means that you can quickly terminate your connections without needing a screwdriver. This can be particularly useful in tight spaces or when you're dangling a light fitting from the ceiling and you don't have a third arm! These connectors are priced from around 25 pence each and are available in 2, 3 and 5 port versions.

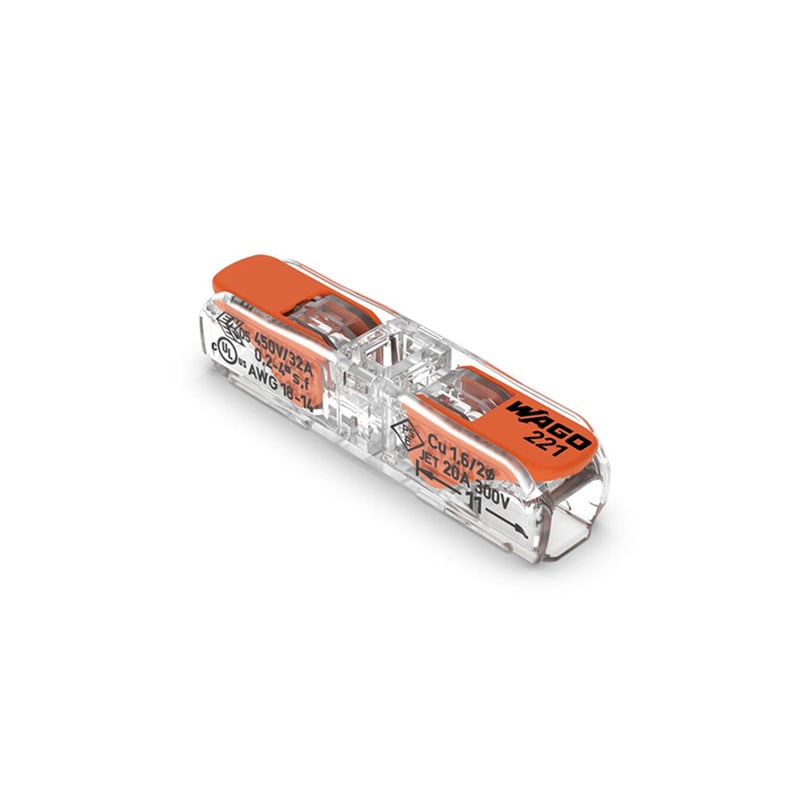

Next from Wago came their 221 series connectors which use 40% less space and have a more transparent design. Suitable for flexible stranded cables from 0.14mm to 4mm2 and with solid and fine stranded cables from 0.2mm to 4mm2. Just like the 222 series, they're rated at 32 amps and are suitable for use in applications up to 400V which includes mains 230V AC.

Cost Effective Alternatives

If you're working to a tight budget or you regularly use a lot of wiring connectors you might want to consider a more cost effective alternative that essentially does the same job. The Q-Nect range from Unicrimp costs around 30% less and has almost identical specifications as the Wago 222 series while being transparent.

Lighting Cable Connectors: Quick & Easy Solution

Lighting cable connectors are vital in both residential and commercial lighting systems. They ensure that lighting installations are safe and efficient. These connectors are designed to handle specific electrical loads common in lighting applications. Typically rated up to 20 amps, the original and patented version of the industry leading lighting connector is the Click Flow connector from Click Scolmore:

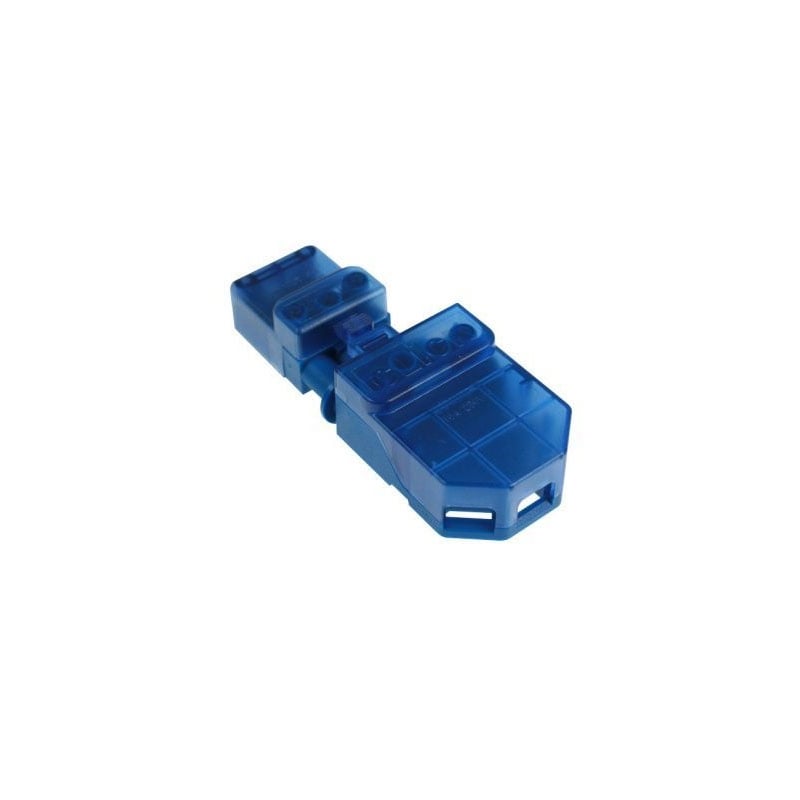

These 2 part cable connectors allow you to wiring one side permanently into your lighting circuit. The other side attaches to your light fixture such as a recessed downlight, you can then plug the fixture in and out of your circuit. This reduces wiring complications when your up a ladder, trying to hold onto the downlight with one hand while wiring small connectors.

These connectors are particularly useful with integrated LED downlights. If the downlight fails and needs replacing you can quickly unplug it from the ceiling and swap it over for a new one, without needing any tools. They come fitted as standard with the Ovia Milli LED downlights shown below. Ovia Lighting are part of the Scolmore Group along with Click Scolmore and Unicrimp.

Selecting the right lighting connector can prevent potential hazards. Incorrect connections may lead to electrical fires or malfunctioning lights. Therefore, it's essential to choose connectors that match the lighting setup's requirements. Other lighting brands such as Collingwood Lighting supply their downlights such as the H2 Lite with their own 2 part wiring connector, but the connectors match the Click Flow connectors, so you can interchange with them. Other lighting brands also do this such as Bell Lighting, this is due to the popularity of the Click Flow connector system.

There a other connectors available in this range including tool-free, fast fit connectors, management boxes, splitters and more.

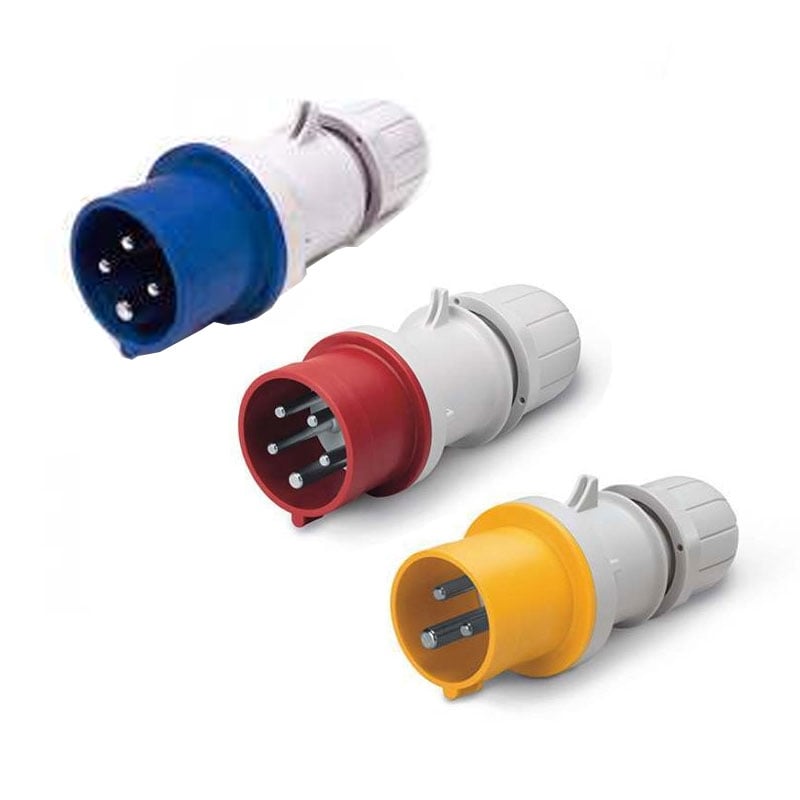

Industrial Connectors: Powering Heavy-Duty Operations

Industrial connectors are essential for robust and reliable power connections in factories and heavy machinery. These connectors withstand tough conditions, including extreme temperatures and vibrations. Their durability is crucial for maintaining operational efficiency in challenging environments.

Heavy-duty operations demand connectors that can handle high power loads. Industrial connectors are rated up to 125A and are designed to provide a stable connection for such demanding applications. Selecting the right connector can minimise downtime and enhance productivity.

They are colour coded, with each colour representing a different voltage. Yellow is for 110V, blue is for 230V and red is 400V. The materials used in industrial connectors are often corrosion-resistant. This ensures they can endure harsh conditions without degrading quickly. Reliability is a key aspect of these connectors, which are critical to industrial success.

Innovations in industrial connectors focus on improved safety and ease of use. Advanced locking mechanisms prevent accidental disconnections during operation. These features make industrial connectors indispensable in powering heavy machinery and equipment.

IP65 Connectors: Understanding Ingress Protection Ratings

IP65 connectors are designed to resist water and dust ingress effectively. Understanding their ratings is crucial for selecting the right product. These connectors offer peace of mind in challenging environments.

IP ratings indicate a product's ability to resist foreign materials. The first digit represents solid protection, while the second deals with liquid resistance. IP65 connectors excel in both areas. We have a dedicated article and waterproof connectors below:

These connectors are ideal for outdoor uses, while IP65 provides adequate protection against sprays of water and dust, there are also IP67 and IP68 rated connectors which are submersible. They safeguard electrical connections from harsh weather conditions. This protection is vital for maintaining functionality and ensuring that your electrical connectors remain secure under harsh outdoor weather conditions.

Key Features of IP65 Connectors:

• Dust-tight and sealed against small particles
• Resistant to water jets from any direction

Choosing IP65 connectors can prevent costly downtime and equipment failures. Ensuring reliable performance in wet or dusty settings is critical. This makes them a preferred choice in many industries.

Lighting connectors often need to adapt to diverse installation environments. Some may be exposed to moisture or dust. Hence, choosing appropriate connectors with protective features like an IP65 rating can enhance durability.

Waterproof Connectors: Ensuring Safety Against Water Damage

Waterproof connectors are essential for safeguarding electrical systems from moisture. They prevent water ingress, which can cause short circuits. Their design ensures durability in wet conditions.

These connectors are not just water-resistant; they are fully waterproof especially when they're IP68 rated. This distinction is crucial for outdoor applications. Water-resistant items may not endure prolonged exposure. In harsh weather, waterproof connectors maintain their integrity. This is vital for marine and outdoor installations. They help avoid costly repairs due to water damage.

Modern waterproof connectors offer robust sealing mechanisms. These features protect electrical contacts from corrosion. Reliable connections are preserved even in submerged situations. Using waterproof connectors extends equipment lifespan. They minimize the risk of electrical failures. This reliability makes them a smart choice for challenging environments.

Material and Design Considerations for Cable Connectors

The material used in cable connectors significantly affects their performance. Polycarbonate is the most popular material for cable connectors as its robust and cost effective. This is due to its high impact resistance and durability, even in demanding environments. It also offers excellent electrical insulation properties and can withstand a wide range of temperatures, making it ideal for both indoor and outdoor applications.

Combining a rubber seal with a wiring connector makes them more water and dust resistant, a match made in heaven! Connector design also influences usability. Features like ergonomic shapes and locking mechanisms enhance ease of use. Design elements ensure secure, efficient connections in any condition.

Choosing the Right Connector: Tips and Best Practices

Selecting the right cable connector is crucial. It ensures efficient and safe connections. Keep several factors in mind during selection.

Consider the application environment. Determine if waterproof, IP65 or IP68 connectors are needed. Harsh conditions require robust options, the last thing you want is to have to go back to a job to repair a faulty connection.

Match connector specifications. Ensure compatibility with cables and devices. Check voltage, current ratings and cable sizes carefully.

Use these tips for informed decisions:

• Assess environmental conditions.
• Verify compatibility with cable and devices.
• Look for certifications and standards compliance.
• Consider ease of installation and maintenance needs.

Proper selection avoids costly error while enhancing performance and reliability.

Conclusion: Connecting to the Future

The world of cable connectors is vast, choosing the right type depends on your specific application. The Wago or Unicrimp Q-Nect lever terminal connectors can be used for a wide range of applications, mainly suited to indoor wiring unless you install them inside a water resistant enclosure. The Q-Nect range is rated from IP66 to IP68 and is ideal for outdoor wiring.

The 2 part connectors such as Click Flow are ideal for lighting applications, using a loop-in, loop out wiring system with the plug & play design will ensure a fast and professional connection for many years to come.

Whether for home, industry, or special applications, informed choices in connectors can make a significant difference in any project.
