A basic circuit protection setup would usually consist of a consumer unit, miniature circuit breakers, and an RCD (Residual Current Device). The RCD would be used as the incoming device which feeds the electrical supply to the circuit breakers. In the event of an electrical imbalance, the RCD trips out and disconnects the supply to the circuit breakers. In this article, I will provide information about the residual current device and explain its uses.

The Importance of Residual Current Devices (RCDs)

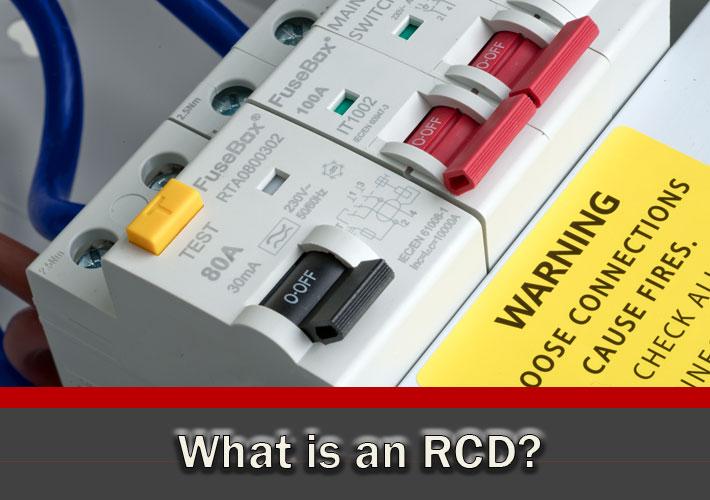

What is an RCD?

A residual current device, or better known as an RCD, is a key safety device in the electrical world. An RCD is used primarily to protect a human being from a hazardous electrical shock. If there is a defect with an appliance in the household, the RCD reacts because of the power surge and disconnects the electric current. The RCD is fundamentally designed to respond quickly. The residual current device oversees the electric current, and the instant any abnormal activity is detected, the device rapidly reacts.

Why Are RCDs So Important?

The simple fact is that a residual current device prevents many fatalities around the world from electrical shock. It can be classed as a life saver due to the safety capabilities it provides. Furthermore, the RCD prevents many non-fatal injuries too in both the domestic and commercial sectors where electricity is involved. Residual current devices are generally installed by qualified electricians who usually pair them with a consumer unit to house the device and connect it to the electrical network.

How RCDs Look and Where They Are Found

Appearance and Location

The appearance of a common RCD is a small switch which you can operate, and it is typically located inside a consumer unit or fuse board. It is quite easy to locate a consumer unit in a household. It generally looks like a white box and can be typically found in areas such as underneath the stairs, the garage, a basement, or maybe even a kitchen cupboard. Understanding where your RCD is located is important in case of any electrical issues that need attention.

How to Reset an RCD

In a case where a light bulb fails in a household, sometimes the RCD will need to be reset in order for the lighting circuit to work again. The surge of electricity that causes the light bulb to fail will ultimately trip out the RCD. To enable the lighting circuit to work again, simply flip the switch on the RCD to reset the circuit. Once reset, the lighting circuit should come back on and return to normal. This quick reset helps prevent further inconvenience and ensures continued protection.

Advanced Protection: RCBOs

What is an RCBO?

Overall, it is vital to have an RCD in operation within a household. If there is not one installed, there could be a risk of not having full circuit protection for the electrical circuits. You can also use an RCBO (Residual Current Circuit Breaker with Overload Protection), which is a combination of a circuit breaker and RCD in one neat device. Using RCBOs to protect your circuits eliminates the need for a separate RCD, as the RCBOs provide their own form of residual protection.

Advantages of RCBOs

RCBOs offer dual protection: they combine both residual current protection (RCD) and overload protection (circuit breaker) in one unit. This is beneficial as it simplifies the setup and provides a more compact solution. In addition, RCBOs are ideal for situations where individual protection for each circuit is necessary, ensuring that only the affected circuit is disconnected in the event of a fault, leaving the rest of the circuits operational.

Why You Should Install RCDs and RCBOs

Lighting or many other appliances could be at risk of failure if there is one power surge through the electrical current. In order to be protected from these power surges, it is highly recommended that these key safety devices are installed within the property. Whether you're upgrading your consumer unit or installing a new electrical system, RCDs and RCBOs are essential components to ensure the safety of your home or workplace.
