An MCB, or Miniature Circuit Breaker, is essential for protecting electrical circuits from damage caused by overloads or short circuits. Moulded case circuit breakers (MCCBs) are another type of circuit breaker used in more demanding applications, particularly in industrial settings where a higher current of over 63 amps is required. It automatically trips to cut off the current, ensuring safety and preventing potential hazards. This article will discuss what MCBs are, how they function, their types, and their key applications.

Key Takeaways

  • Miniature Circuit Breakers (MCBs) automatically shut off circuits during overloads or short circuits, offering reliable and reusable protection compared to traditional fuses.
  • MCBs utilize electro-mechanical mechanisms, including thermal and magnetic elements, to quickly respond to various electrical faults, preventing significant damage. Circuit breaker contacts play a crucial role in this process by opening and closing circuits during fault conditions, ensuring the safe interruption of current flow.
  • Selecting the appropriate type of MCB based on current ratings, load types, and trip characteristics is crucial for ensuring effective protection in both residential and industrial applications.

What is an MCB?

Modern Consumer Units

A miniature circuit breaker, commonly abbreviated as MCB, serves as an automatic electrical switch designed to halt the flow of electricity in a circuit during abnormal conditions like overloads or short circuits. The essential role of these devices is safeguarding electrical systems from damage due to excessive current that might result from either overload situations or short circuits. In the event such issues arise, miniature circuit breakers (MCBs) are engineered to promptly trip and interrupt the current flow, thus averting potential harm.

In contrast to conventional fuses, which necessitate replacement once they are blown out, MCBs offer superior reliability and sensitivity to overcurrent scenarios. This feature enables them not only to provide effective protection for electrical circuits, but also allows for their straightforward reset process and reuse capability – factors that contribute significantly to their appeal for use within both residential settings and industrial environments alike. They can be found across various amperage specifications tailored toward different uses, from home appliances like lighting fixtures and heaters all the way up to heavy-duty industrial equipment.

Due largely in part because of their adaptability coupled with high dependability factors make MCBs foundational components when it comes down to constructing modern-day electric setups From delving into how exactly these mechanisms function plus exploring specific variations among types available on market today one will gain deeper insight regarding why having such apparatuses present is key to ensuring ongoing preservation overall safety performance levels pertaining thereunto electrical circuitry networks at large.

Inside a Miniature Circuit Breaker

federal-elektrik-otomatik-sigorta-miniature-circuit-breaker-ic-mekanizmasi-inside-view-2

[image courtesy of Federal Electrik]

Grasping the functionality of Miniature Circuit Breakers (MCBs) necessitates an in-depth look at their core parts. At its essence lies the trip unit, which vigilantly surveys electrical flow and promptly intervenes by triggering the MCB during incidences of excess current or short circuits. This vital part acts as a safeguard, breaking the circuit swiftly to thwart any potential damage.

Within each MCB are dynamic and stationary contacts that work together to halt electrical flow upon tripping. These circuit breaker contacts open and close in response to fault conditions, ensuring the interruption of current flow and the safe operation of electrical systems. They do so with support from incoming and outgoing terminals that connect seamlessly with an existing electrical circuit for smooth integration into various systems. The housing surrounding these components serves dual functions: it insulates internal workings while protecting users against inadvertent contact with electrified elements.

The device is Equipped with auxiliary features such as a trip indicator displaying the breaker’s status—either active (‘on’) or inactive (‘off’). There’s a latch mechanism ensuring continuity in normal operations within electric currents until disruption is necessary. Arc chambers play another significant role. They quench electric arcs created when connections are severed - contributing to both safety measures and effective cut-offs in current transmission under adverse conditions – thereby upholding secure performance standards across electrical circuits.

How MCBs Work

MCBs utilize an electro-mechanical mechanism for safeguarding electrical circuits from overcurrent and short circuit incidents. Within this mechanism, thermal elements react to overload conditions while magnetic components act on short circuit situations. In the event of excessive current flow, a bi-metallic strip heats up and bends, initiating the tripping process. Conversely, in cases of a short circuit, it’s a solenoid-driven plunger that intervenes swiftly to disconnect the current.

Historically, oil circuit breakers were among the earliest devices used for arc interruption in electrical systems. These devices utilized hydrocarbon oil to decompose and form gases that cool the arc, though they had significant disadvantages such as fire hazards.

Their ability to address electrical faults makes MCBs more effective than conventional fuses due to their integrated thermal and magnetic detection systems. Discussions will delve into how MCBs function under normal circumstances as well as detail their tripping response and reset capabilities - providing an extensive insight into their role in protecting electrical circuits.

Normal Operation

Under standard conditions, the electrical current travels from the entry contact through to the load via the MCB’s internal conductor. This constant flow of electricity keeps the circuit engaged and ensures that all connected electrical devices function correctly. The MCB maintains a closed position, ensuring an uninterrupted path for current as long as it remains within its prescribed maximum current rating.

During regular operation, both the bi-metallic strip and the magnetic element inside the MCB remain dormant since neither significant heat nor magnetic force is produced by normal currents to activate them. This inactivity guarantees that interruptions only occur when absolutely necessary, thereby providing dependable safeguarding without unwarranted disruptions.

Tripping Mechanism

When a Miniature Circuit Breaker (MCB) detects overload and short circuit conditions, its tripping mechanism is activated. During an overload, the elevated current causes the MCB’s bi-metallic strip to heat up and flex. This bending releases a latch through the tripping mechanism, which consequently opens the circuit, thereby interrupting electrical flow and protecting against potential damage from continuous overcurrent.

In contrast, during a short circuit situation, there is an immediate reaction due to a rapid rise in current that generates considerable magnetic force within its solenoid. The generated force promptly propels a plunger into contact with the trip lever causing swift disconnection of the circuit—almost instantaneously preventing major harm by providing efficient short-circuit protection.

Thus equipped with both thermal-based and magnetically-triggered tripping mechanisms in place inside them. MCBs can competently address diverse types of faults within electrical systems, promoting both safe operation as well as maintenance of system integrity.

Resetting an MCB

Upon experiencing a trip, an MCB can be manually re-engaged by flipping the switch back to its initial closed position. This act of resetting is both simple and expedient, enabling users to promptly restore power without having to replace components as one would with conventional fuses. The integrated trip spring within the MCB plays a crucial role in facilitating the mechanical reset process by assuring that it snaps back into place, thereby reconnecting the circuit.

The action of resetting an MCB following its activation due to a fault is not only simple, but also essential for preserving electrical system integrity. With their capacity for quick restoration, MCBs offer an efficient mechanism for handling electrical issues while minimizing any interruptions in electricity delivery.

Types of MCBs

MCB Circuit Breaker

Circuit breakers are sorted by their tripping curve characteristics as well as their current ratings and poles. The most frequently utilized variants include Types B, C, and D. Each is engineered to serve distinct load conditions and applications. They're in available in single, double, triple and four pole versions. Single pole are used for domestic circuit protection, double pole are used for applications like transformers, triple pole are used in 3 phase distribution boards. The less popular four pole circuit breakers are used in applications when there is a potential for a fault in the neutral wire, providing an added layer of protection for the neutral wire.

They come in different breaking capacity types which are 6kA and 10kA. The 6kA versions cost less and are generally used in domestic applications while 10kA are recommended for use in 3 TPN (Triple Pole & Neutral) distribution boards. Brands like FuseBox have both versions available in a very reasonable price.

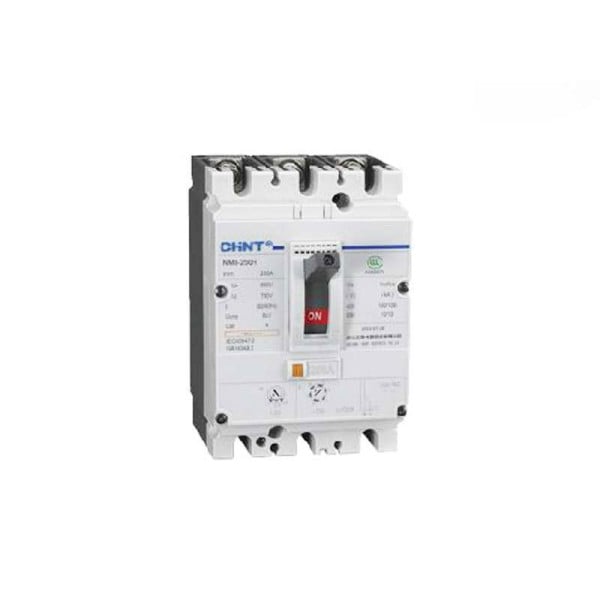

Moulded case circuit breakers (MCCBs) are known for their robust performance and are particularly suitable for demanding industrial applications. MCCBs offer enhanced protective features and higher ratings compared to other circuit breakers, making them essential for high-capacity loads and critical infrastructure. Their reliability and operational capabilities ensure they can handle the rigorous demands of industrial settings effectively. They're typically rated up to 1250 amps, then for even higher current ratings for very specialised industrial applications there are Air Circuit Breakers (ACBs), which are rated up to 6300 amps.

Chint MCCBACB - Air Circuit Breaker

Selecting the Right MCB

It’s essential to assess the current rating of an application, along with its load type and necessary protection levels, when determining the appropriate miniature circuit breaker (MCB). For home use, MCBs that have lower amperage ratings are adequate. They offer safeguarding for household elements like lights and heating systems as well as various domestic devices. On the other hand, in industrial environments where heavy-duty machinery and equipment are prevalent, MCBs with higher amperage ratings might be needed to cope with their electrical demands.

The significance of trip curves can’t be overstated during the process of selecting a fitting MCB. Trip curves guide users in aligning their choice of circuit breakers precisely with the safety requirements specific to their applications by showing how an MCB will respond under diverse fault scenarios. By grasping and applying knowledge about these trip curves, individuals can make educated choices that result in superior protection for their electrical installations.

Applications of MCBs

surge protection consumer unit

MCBs are widely utilized across residential, commercial, and industrial settings due to their ability to automatically disconnect circuits before they become overheated. This feature significantly lowers the likelihood of electrical fires, boosting overall safety measures. Besides enhancing safety, MCBs provide a cost-effective solution as they do not require frequent replacement. Instead, they can be easily reset and used again.

Equipped with selective coordination capabilities, MCBs ensure that only the defective section is isolated in case of a malfunction while maintaining the operation of other parts within the system. Periodic testing of these devices helps in early detection of potential issues which contributes to ensuring both security and efficiency within electrical systems.

Subsequent sections will delve into detailed applications for MCBs concerning their uses in household environments as well as extensive industrial setups.

What's Safer than an MCB?

A Residual Current Circuit Breaker with Overcurrent protection (RCBO) is a more advanced type of circuit breaker. Featuring all of the benefits of an MCB but with residual protection. An RCBO operates in a similar way to an RCD (Residual Current Device), they monitor the electricity flowing through the devices, measuring the current flowing in, versus the current flowing out. In the event of a current in-balance they shut off the power.

FuseBox RCD

RCDs used to be as an incoming device inside a consumer unit. This would help to protect all of the connected MCBs with residual protection. These days most electricians don't use RCDs with MCBs, they use a main switch incomer with RCBOs to protect all of their outgoing circuits. This combination protects each individual circuit and doesn't trip out the entire board, or part of the board (dual RCD) in the event of an overload.

FuseBox Metal Consumer Unit with Dual RCD Surge Protection & MCBs

Domestic Installations

MCBs serve as crucial protective devices within home electrical systems, guarding against dangers that may arise from overloads and short circuits. They play a key role in maintaining the integrity of household circuits connected to essential appliances such as lights, heaters, and cooking units. By preventing harm or fire hazards due to circuit malfunctions in lighting systems, MCBs offer peace of mind for homeowners.

When it comes to heating elements within homes, MCBs ensure they operate smoothly by mitigating issues caused by power fluctuations. Electric cookers rely on the protection provided by these breakers to shield them from excessive current that could cause damage. The integration of MCBs into residential electrical setups thus enhances both safety standards and device dependability across various applications.

Industrial Applications

Protective devices such as MCBs play a crucial role in shielding heavy-duty motors and machinery from electrical mishaps within industrial settings. These safety components are essential for maintaining both the efficacy and protection of these environments, especially given that the equipment is frequently exposed to substantial inrush currents and prone to potential overloading. Specifically, MCBs provide defense for sizeable motors and heavy apparatuses, facilitating their safe utilization across various loading scenarios.

In relation to welding equipment, which must be defended against intense current spikes, protective devices prove indispensable. By dependably averting electrical faults, MCBs contribute significantly to upholding not only the safety but also the operational integrity of industrial tools and machines—minimizing risks associated with damage or interruptions in service.

Advantages of MCBs

MCBs present multiple benefits that make them a superior option for contemporary electrical systems compared to traditional fuses. These circuit breakers can be conveniently reset and employed again, in contrast to fuses which must be discarded after each use. This feature of MCBs offers both practicality and cost savings, as it allows users to swiftly re-establish power without the ongoing expense of replacing parts.

The design of MCBs includes protective enclosures which enhance user safety by preventing inadvertent contact with electrified components. They also afford the flexibility to choose from different ampere ratings and trip characteristics according to unique protection requirements. Consequently, these advantages render MCBs an effective choice for ensuring the integrity of electrical systems.

Understanding Trip Curves

MCB tripping curves diagram

Trip curves depict the response patterns of circuit breakers to a range of overload and short-circuit conditions, with each pattern identified by alphabetic designations. These graphs show the threshold current level at which miniature circuit breakers (MCBs) will immediately activate. For example, Type B MCBs are designed to trip when experiencing currents between 3 and 5 times their rated load current, making them ideal for protecting sensitive electronic equipment as well as residential environments. Their suitability lies in residential setups or with delicate devices where lower fault levels must be managed carefully.

Type C circuit breakers trigger a trip between 5 to 10 times the rated current – optimal for more industrial use involving modestly sized motors or other applications like fluorescent lighting that experience moderate initial surges of power.

For sectors heavy on industrial use, reliance falls on Type D circuit breakers due to their capacity to manage surge currents ranging from 10 up to an impressive 20 times the unit’s specified rating—catering admirably for high-demand equipment like X-ray machines or large motor units without faltering under pressure.

Grasping the nuances within these trip curves is crucial when picking out an appropriate MCB tailored to particular needs. By examining these graphical representations closely, users can ascertain that they have selected an MCB capable of offering adequate defense for their electrical systems against damage while also maximising operational safety.

Maintenance and Testing of MCBs

It is critical to conduct regular upkeep and inspections of Miniature Circuit Breakers (MCBs) to ensure they operate effectively and safely. Employing a multimeter or voltage tester allows for the accurate assessment of voltage levels, ensuring that MCBs work properly when switched on and off. Performing tests for continuity is vital in confirming that circuits are intact, which is essential for the correct functioning of MCBs.

Evaluating the system for earth faults and pinpointing short circuits through systematic testing can help avoid significant harm to electrical systems as well as devices connected to them. Consistent testing plays an important role in early detection of potential ground faults, preserving both safety standards and reliability within electrical infrastructures by identifying any issues with faulty circuits.

Overlooking routine maintenance checks and assessments poses numerous risks including possible electrical fires or damage to appliances due to undetected flaws such as faulty circuit connections or earth faults within the system.

Safety Precautions for Circuit Breakers

When working with circuit breakers, adhering to safety precautions is paramount to prevent electrical shock, injury, or even fatal accidents. Here are some essential guidelines to ensure safe handling and operation of circuit breakers:

  1. Turn off the Power: Before performing any maintenance or repairs on a circuit breaker, ensure that the power is turned off at the main electrical panel. Use a voltage tester to verify that the circuit is de-energized.
  2. Use Personal Protective Equipment: Always wear protective gear such as safety glasses, gloves, and a hard hat when working with electrical systems. This equipment helps shield you from potential hazards.
  3. Avoid Overreaching: Never overreach or stretch to access a circuit breaker. Instead, use a ladder or step stool to maintain a safe and stable working position.
  4. Keep Children Away: Ensure that children are kept away from circuit breakers and electrical panels to prevent accidental contact or tampering.
  5. Regular Maintenance: Regularly inspect and maintain circuit breakers to ensure they are functioning correctly. Look for signs of wear, overheating, or damage.
  6. Replace Faulty Breakers: Replace any circuit breakers that are damaged, worn out, or malfunctioning. Always use a replacement breaker that matches the original specifications.
  7. Follow Manufacturer Instructions: Adhere to the manufacturer’s instructions for the installation, operation, and maintenance of circuit breakers.
  8. Use Lockout/Tagout Procedures: Implement lockout/tagout procedures to prevent accidental startup of electrical equipment during maintenance or repairs.
  9. Be Aware of Electrical Shock Hazards: Be mindful of electrical shock hazards, such as water, metal objects, or other conductive materials that can increase the risk of electrical shock.
  10. Seek Professional Help: If you are unsure about any aspect of circuit breaker safety or operation, seek assistance from a licensed electrician or a qualified professional.

By following these safety precautions, you can minimize the risks associated with circuit breakers and ensure a safe working environment for yourself and others.

Summary

To sum up, miniature circuit breakers (MCBs) are essential for the proper functioning and safety of contemporary electrical installations by offering dependable protection against overloads and short circuits. MCBs have a significant advantage over traditional fuses due to their ability to be reset after tripping, which makes them an economical and efficient choice for both residential and industrial applications. By comprehending the diverse types of MCBs available, grasping how they function internally, and selecting an appropriate model for one’s needs can guarantee that electrical systems remain safe and operate smoothly.

The versatility of Miniature Circuit Breakers along with their reliability ensures they are integral components within current day electric frameworks. They serve a crucial role from protecting devices in homes to ensuring industrial equipment operates without interruption by maintaining the overall health of various electrical setups. Consistent upkeep combined with systematic inspections increases the level of security these devices offer so that when required, they react appropriately.

As you continue managing your electrical necessities, it’s imperative to bear in mind both selecting suitable miniature circuit breakers (MCBs) tailored for your specific situation as well as investing time into regular maintenance routines. Focusing on these aspects not only protects against potential hazards, but also confirms a steadfast power supply throughout your home or enterprise environment.

Frequently Asked Questions

What does MCB stand for and what is its purpose?

MCB stands for Miniature Circuit Breaker, and its primary purpose is to protect electrical circuits from overcurrent, whether caused by overload or short circuits.

How do MCBs differ from fuses?

MCBs are reusable and can be reset after an over-current event, whereas fuses must be replaced once they operate. This makes MCBs more convenient and cost-effective in the long run.

What is a significant safety feature of MCBs?

A significant safety feature of MCBs is their housing within a plastic casing, which enhances safety during use and operation.

This design minimizes the risk of electrical hazards.

What type of electrical faults do MCBs not protect against?

MCBs do not protect against electrical faults caused by earth leakage, as they are designed primarily to safeguard against overcurrents and short circuits.

Therefore, additional protection devices, such as RCDs or RCBOs, are necessary for comprehensive safety.

In what context are Type D MCBs utilized?

In heavy industrial environments like factories, where there are compressors, or large winding motors that can generate high inrush currents, Type D MCBs are commonly used.
